Choose JR Lighting for your lighting supplier
 |
| Place of Origin: | Made in China |
| Brand Name: | ADX TECH |
| Certification: | CE |
| Model Number: | JR-N36 |
| Minimum Order Quantity: | 2 Piece/Pieces LED Wall Washer |
|---|---|

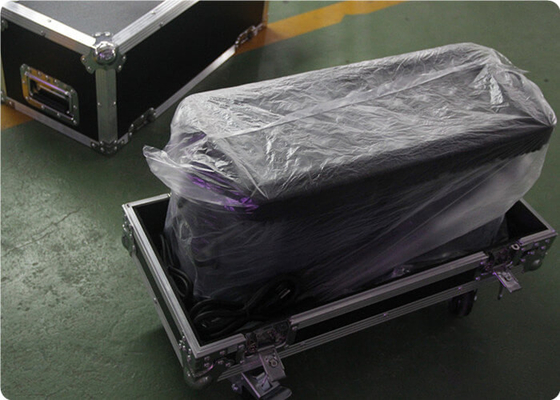

| Packaging Details: | Flight case for LED Wall Washer |
| Delivery Time: | 3-5days upon receiving payment |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100 Piece/Pieces per Week LED Wall Washer |
| Keyword: | LED Wall Washer | LEDs: | 36pcs * 8W, Quadcolor RGBW 4in1 |
|---|---|---|---|
| Beam Angle: | 25 Degree | DMX Channels: | 4/8 CH |

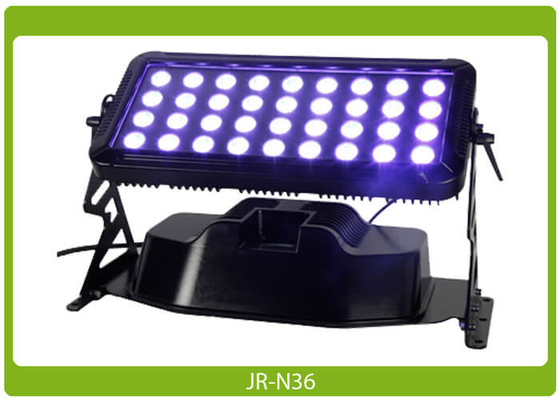

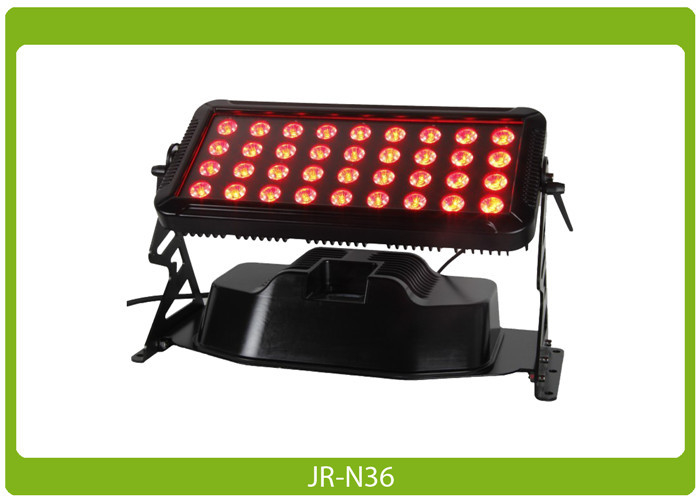

LED Wall Washer Outdoor, 36X8W, Quadcolor RGBW 4in1
LED Wall Washer Specifications:
Power Supply: AC100V-240V, 50/60Hz
Power Consumption: Max. 340W
Fuse: 3A
RGBW Color Mixing
LEDs: 36pcs * 8W, Quadcolor RGBW 4in1
LED Lifespan: >50,000 hours
Flicker Free
LED Lens Beam Angle: 25 degree
Control Mode: DMX, Autorun and Master/Slave
DMX Channels: 4/8 CH
Built-in power supply
Built-in 3-pin XLR serial data connection.
Control board with 4-digit display.
Electronic Dimmer: 0-100% linear dimmer
Electronic Strobe: 1-20 flash/s

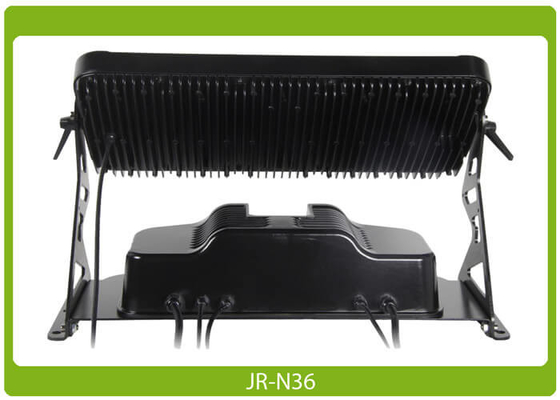

Cooling: Entire casing as heat sink, Natural convection cooling
Data In/Out: XLR 3Pin
Power In/Out: Waterproof, Daisy Chain
Tilt: -180°~+180°
Housing: Die-cast Aluminium
Housing Color: Black
IP Rating: IP65
Dustproof: Tempered Glass
Environment Temp: -20°C-40°C
with mounting bracket
Dimensions(mm): L650*W220*H273 (Panel horizontal placed)
Net Weight: 20kg
IP65 definition is:.
1) No ingress of dust; complete protection against contact (dust tight)
2) Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.
(Test duration: at least 3 minutes, Water volume: 12.5 litres per minute, Pressure: 30 kPa at distance of 3 m)
Contact Duran:
| FAQS |
| 1) What is your policy for claims? |
| Claims if any, concerning the goods shipped shall be filed within 30 days after arrival at destination, supported by an inspection report issued by competent authority. It is understood the sellers shall not be liable for any discrepancy of the goods shipped due to causes from which the insurance company, shipping company, other transportation organization or post office are liable. |
| 2) Do you offer samples? |
| Yes, we offer samples to our customers in most occasions, with cost of samples and postage/courier charge/shipping cost to be taken by the customer. |
| 3) Do you accept OEM order? Can you put our logo on your products and packages? |
| Normally, we provide neutral packing. If you want us to put your logo or trademark on products and packages, then you must meet our OEM minimum order quantity(i.e.M.O.Q.) requirements. The OEM M.O.Q. for a definite model number is subject to negotiation with us. And a reasonable charge should occur if you need us to print any labels or logo for you. After getting the written authorization comes from you, we can make the logo/trademark as per your design and instructions. |
| 4) What is your payment term? Do you accept credit card payment? |
| Sorry, any cheques or credit cards are not acceptable to us. In most occasions we accept payments as follows. For more payment details discussion, please contact our Sales Team. |
|
T/T 1. By 100% T/T in advance. |
|
Western Union(WU) 1.By 100% in advance |
Contact Person: Mr. Duran
Tel: 86-020-37248287
Fax: 86-020-37248287
